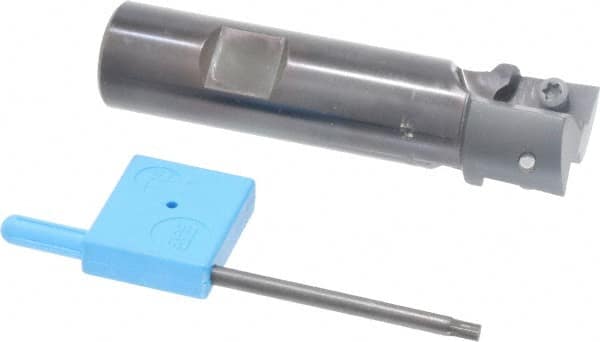

Kyocera - 1" Cut Diam, 0.64" Max Depth of Cut, 3/4" Shank Diam, 3-3/8" OAL, Indexable Square Shoulder End Mill - APET 1604 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 06023436
Brand: Kyocera
Model #: 8601010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Inch) | 3-3/8 |
| Overall Length/Projection (Decimal Inch) | 3.3800 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6400 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EM-AL |
| Number of Flutes | 2 |
| Weldon Flat | No |
| Insert Compatibility | APET 1604 |
| Extension Length (Decimal Inch) | 1.360 |
