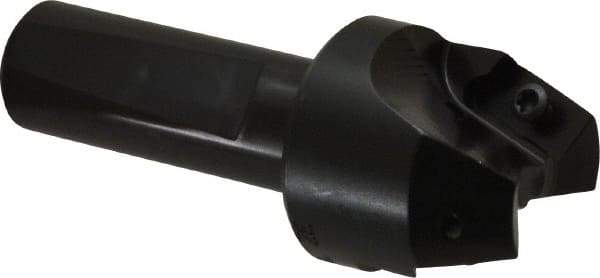

Kyocera - 20° Lead Angle, 1.42" Max Cut Diam, 1" Min Cut Diam, 0.595" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, APET 1604 Insert Style, 3-1/4" Overall Length, Weldon Flat, 40° Included Angle
Item #: 06022958
Brand: Kyocera
Model #: 8600730
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.4200 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 20 |
| Included Angle | 40 |
| Overall Length (Decimal Inch) | 3.2500 |
| Insert Style | APET 1604 |
| Maximum Depth of Cut (Decimal Inch) | 0.5950 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | CM |
| Head Length (Decimal Inch) | 1.3500 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 2.0310 |
