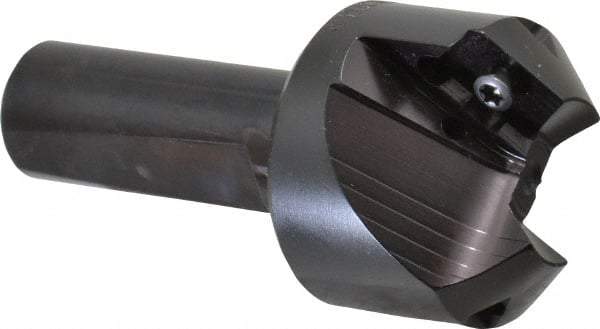

Kyocera - 45° Lead Angle, 1.65" Max Cut Diam, 0.8" Min Cut Diam, 0.44" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, APET 1604 Insert Style, 3-1/4" Overall Length, Straight Shank, 90° Included Angle
Item #: 06022925
Brand: Kyocera
Model #: 8600722
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.8000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.6500 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Included Angle | 90 |
| Overall Length (Decimal Inch) | 3.2500 |
| Insert Style | APET 1604 |
| Maximum Depth of Cut (Decimal Inch) | 0.4400 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | CM |
| Head Length (Decimal Inch) | 1.3500 |
| Weldon Flat | No |
| Shank Length (Decimal Inch) | 2.0310 |
