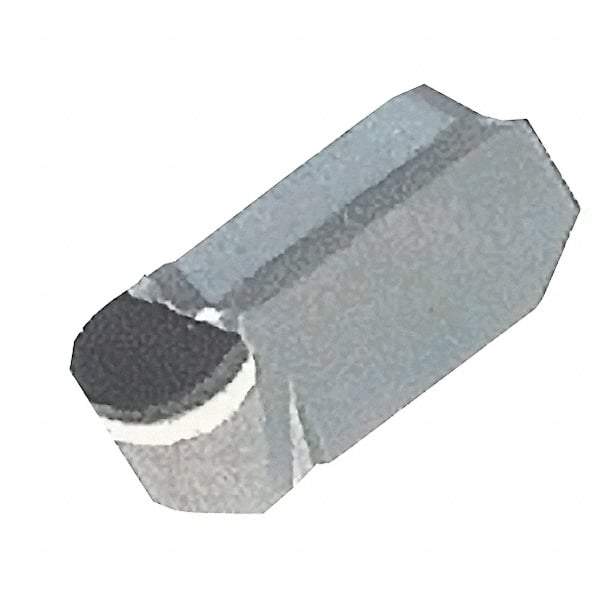

Iscar - 800K400GITM Grade IB50, 0.315" Cutting Width CBN Grooving Insert - 0.79mm Max Depth of Cut, Neutral, 0.157" Corner Radius
Item #: 05996913
Brand: Iscar
Model #: 6411195
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | GITM |
| Insert Size | 800K400 |
| Material | CBN |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 0.79 |
| Maximum Depth of Cut (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IB50 |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Corner Radius (Decimal Inch) | 0.1570 |
| Overall Length (mm) | 15.01 |
| Overall Length (Decimal Inch) | 0.5910 |
| Series | Cut Grip |
| Rake Angle | 20 |
| Rake | Positive |
