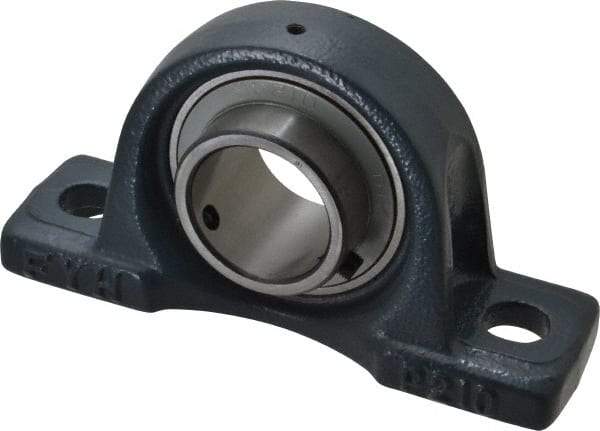

Value Collection - 1-15/16" ID, 4-7/16" OAW x 8-1/8" OAL x 4-7/16" OAH High Temperature Ball Bearing Pillow Block - 5,120 Lb Static Cap, 7,700 Lb Dyn Cap, 6-1/4" Btw Mnt Hole Ctrs, 2-1/4" Base-to-Ctr Ht, Cast Iron
Item #: 05702279
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Ball Bearing Pillow Blocks High Temperature |
| Inside Diameter (Inch) | 1-15/16 |
| Width (Decimal Inch) | 2.0315 |
| Width (mm) | 51.60 |
| Overall Length (Inch) | 8-1/8 |
| Overall Length (mm) | 206.3750 |
| Overall Length (Decimal Inch) | 8.1250 |
| Overall Height (Inch) | 4-7/16 |
| Overall Height (Decimal Inch) | 4.4375 |
| Overall Height (mm) | 112.71250 |
| Static Load Capacity (Pounds) | 5120.00 |
| Dynamic Load Capacity (Pounds) | 7700 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 6.2500 |
| Material | Cast Iron |
| Distance Between Base And Center (Decimal Inch) | 2.2500 |
| Distance Between Base And Center (Inch) | 2-1/4 |
| Bolt Size (Inch) | 5/8 |
| Bolt Size (Decimal Inch) | 0.6250 |
