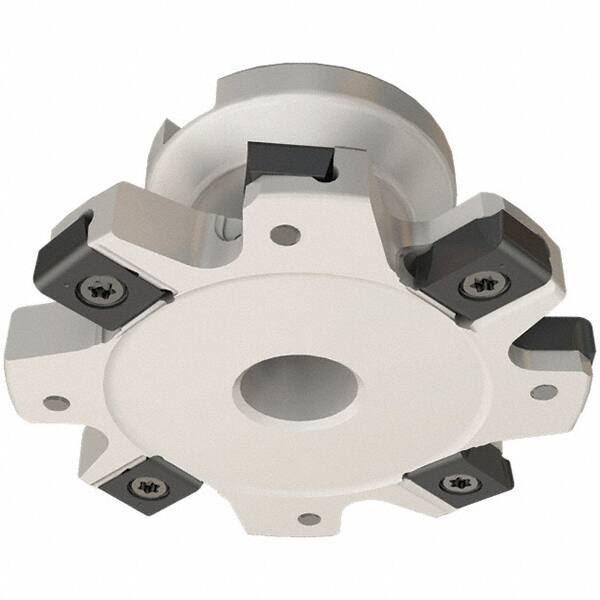

Iscar - Shell Mount B Connection, 3/8" Cutting Width, 1.07" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 10 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05596986
Brand: Iscar
Model #: 3103145
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (Decimal Inch) | 1.0700 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 10 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Cutting Width (Decimal Inch) | 0.3940 |
| Hub Diameter (Decimal Inch) | 2.1600 |
| Radius | No |
| Manufacturers Catalog Number | FDN D4.0-0.375-08-LN12 |
| Complete Insert Compatibility1 | LNET 12 |
