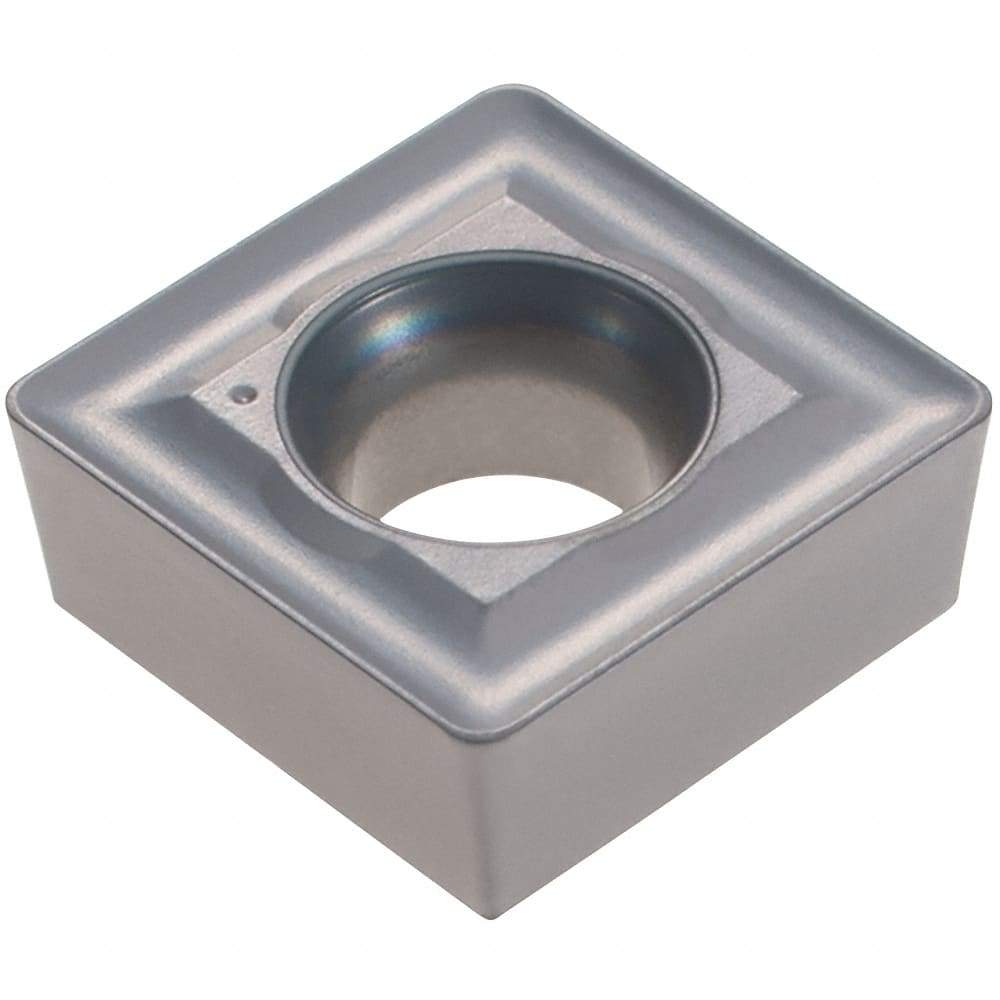

Iscar - SCMT43219 19 Grade IC907 Carbide Milling Insert - TiAlN/TiN Finish, 1/2" Inscribed Circle, 0.1874" Thick, 0.8mm Corner Radius
Item #: 05560628
Brand: Iscar
Model #: 5505521
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN/TiN |
| Chip Breaker | 19 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 90 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shape | Square |
