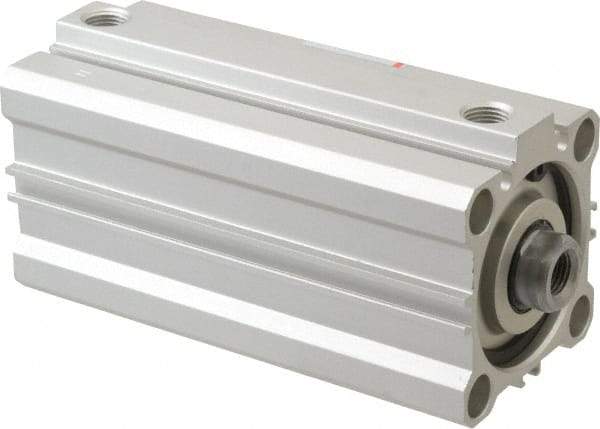

SMC PNEUMATICS - 2-15/16" Stroke x 1-1/2" Bore Double Acting Air Cylinder - 1/8 Port, 3/8-24 Rod Thread, 145 Max psi, 15 to 160°F
Item #: 05547666
Brand: SMC PNEUMATICS
Model #: NCDQ2B40-75DZ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/2 |
| Bore Size (mm) | 40.00 |
| Rod Diameter (Decimal Inch) | 0.630 |
| Rod Diameter (mm) | 16.00 |
| Stroke Length (Inch) | 2-15/16 |
| Stroke Length (mm) | 75.00 |
| Mounting Style | Double Clevis |
| Port Size | 1/8 |
| Port Type | NPT |
| Width (Decimal Inch) | 2.2440 |
| Width (mm) | 57.00 |
| Length (Decimal Inch) | 4.390 |
| Length (mm) | 46.50 |
| Distance Between Centers Width (mm) | 40.0000 |
| Material | Aluminum Alloy |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 145 |
| Rod Thread Size | 3/8-24 |
