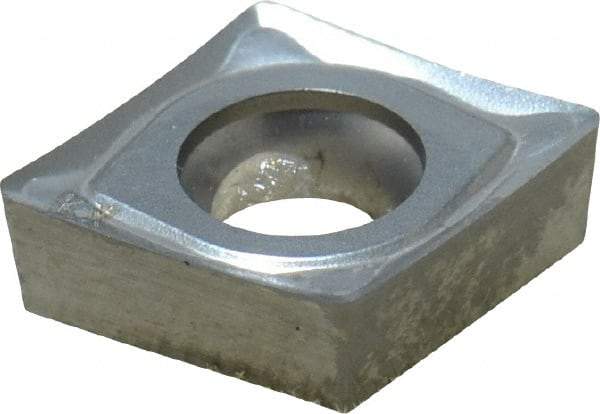

Seco - CCGT432F AL Grade KX Carbide Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 05543830
Brand: Seco
Model #: 15790
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 432F |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KX |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Chip Breaker | AL |
| Hole Diameter (Decimal Inch) | 0.2170 |
| ISO Number | CCGT432 |
| Relief Angle | 7 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Shape | Diamond |
