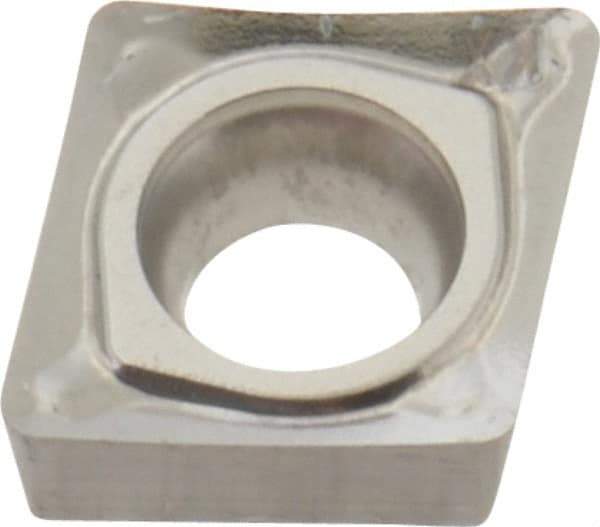

Seco - CCGT32.52F AL Grade KX Carbide Turning Insert - Uncoated, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 05543814
Brand: Seco
Model #: 15754
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 32.52F |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KX |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Chip Breaker | AL |
| Hole Diameter (Decimal Inch) | 0.1770 |
| ISO Number | CCGT32.52 |
| Relief Angle | 7 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Shape | Diamond |
