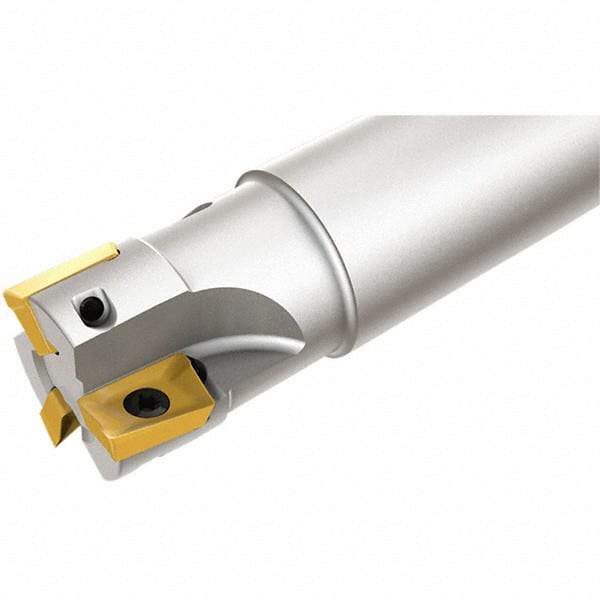

Iscar - 12mm Cut Diam, 10mm Max Depth of Cut, 16mm Shank Diam, 80mm OAL, Indexable Square Shoulder End Mill - Cylindrical Shank, 90° Lead Angle, Series Heli2000
Item #: 05432166
Brand: Iscar
Model #: 3101921
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 80.00 |
| Overall Length/Projection (Decimal Inch) | 3.1496 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Weldon Flat | No |
| Maximum RPM | 91850 |
