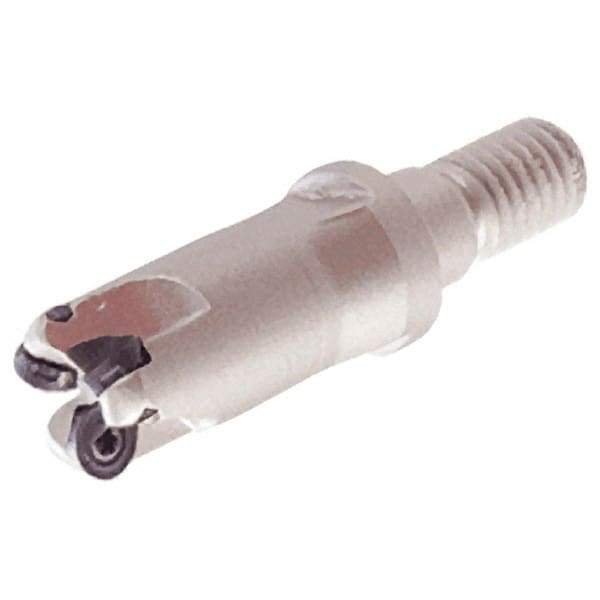

Iscar - Indexable Copy End Mill - 4 Inserts, RXCR, RXCW Insert, ER-M Toolholder
Item #: 05421987
Brand: Iscar
Model #: 3101790
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Cutter Inserts | 4 |
| Insert Style | RXCR; RXCW |
| Toolholder Style | ER-M |
| Series | FlexFit; RoundMill |
| Overall Length (mm) | 30.00 |
| Insert Diameter (mm) | 13.00 |
| Insert Diameter (Decimal Inch) | 0.5118 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Modular Connection Size | M10 |
