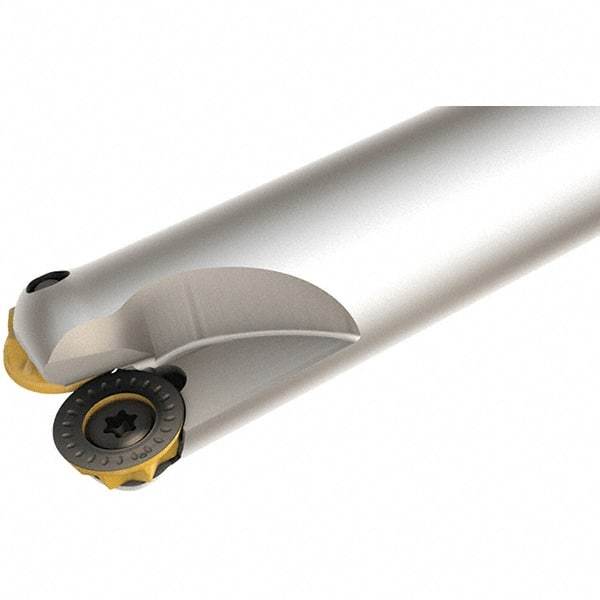

Iscar - 1-1/2" Cutting Diam, Modular Connection Indexable Copy End Mill - 3 Inserts, RC.W Insert, ER Toolholder
Item #: 05413000
Brand: Iscar
Model #: 3103190
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Cutter Inserts | 3 |
| Insert Style | RC.W |
| Toolholder Style | ER |
| Series | RoundMill |
| Overall Length (mm) | 160.00 |
| Insert Diameter (mm) | 24.00 |
| Insert Diameter (Decimal Inch) | 0.9449 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
