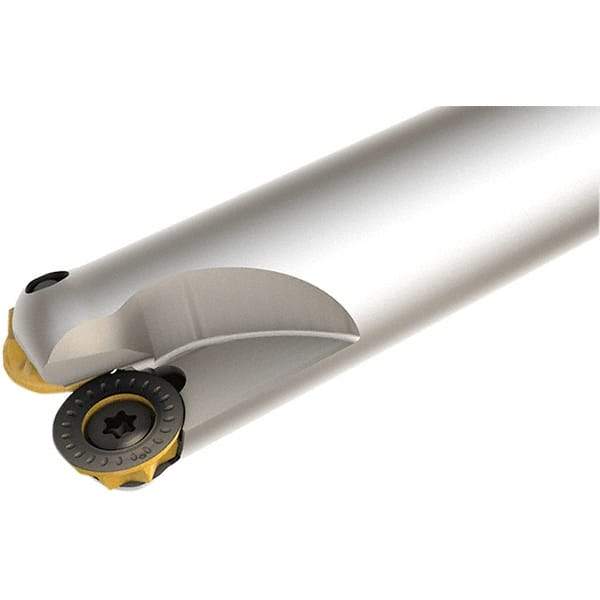

Iscar - 16mm Cutting Diam, 8mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RXCR, RXCW, RXMT 10 Insert, ER Toolholder
Item #: 05412945
Brand: Iscar
Model #: 3101332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Cutter Inserts | 2 |
| Insert Style | RXCR; RXCW; RXMT 10 |
| Toolholder Style | ER |
| Series | RoundMill |
| Overall Length (mm) | 160.00 |
| Insert Diameter (mm) | 15.00 |
| Insert Diameter (Decimal Inch) | 0.5906 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
