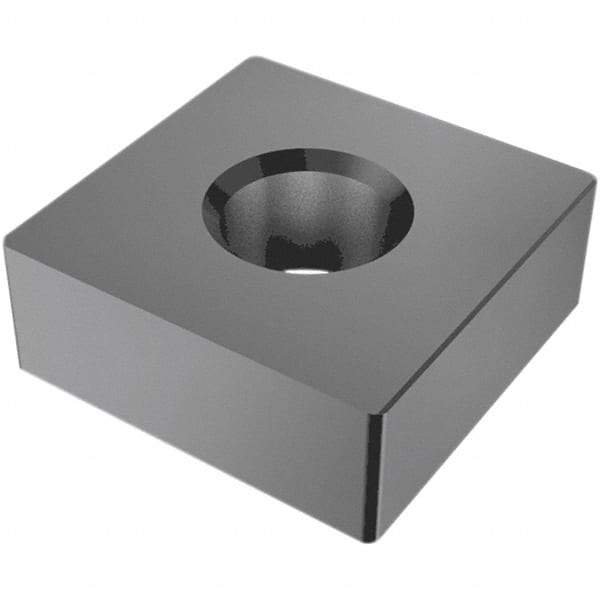

Iscar - SNGA431 Grade IN22 Ceramic Turning Insert - Al2O3/TiCN Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 05411244
Brand: Iscar
Model #: 5700410
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SNGA |
| Insert Size | 431 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IN22 |
| Coating | Al2O3/TiCN |
| Rake | Neutral |
| Relief Angle | 0 |
| Included Angle | 90 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
