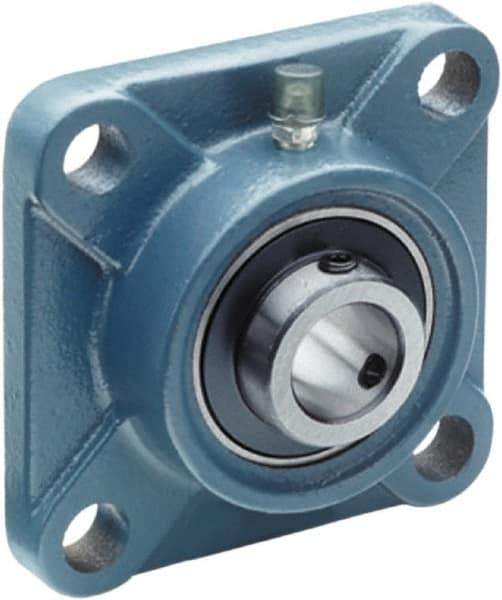

Tritan - 1-1/8" ID, 4-1/4" OAL x 1.58" OAH 4-Bolt Flange - 2,540 Lb Static Cap, 4,384 Lb Dyn Cap, 3.27" Btw Mnt Hole Ctrs, 0.71" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 04940185
Brand: Tritan
Model #: UCF206-18
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.1250 |
| Inside Diameter (Inch) | 1-1/8 |
| Width (Decimal Inch) | 4.2500 |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Height (Decimal Inch) | 1.5800 |
| Static Load Capacity (Pounds) | 2540.00 |
| Dynamic Load Capacity (Pounds) | 4384 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.2700 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.7100 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
| Metric Bolt Size | 10.0000 |
