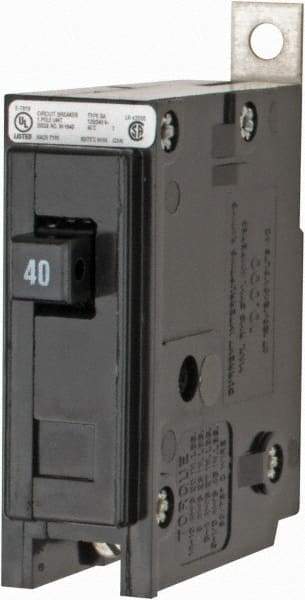

Eaton Cutler-Hammer - 40 Amp, 120/240 VAC, 24 VDC, 48 VDC, 80 VDC, 1 Pole, Bolt On Miniature Circuit Breaker - Thermal Magnetic Trip, 14-4 AWG, 2-3/8 Inch Deep x 2-15/16 Inch High x 1 Inch Wide
Item #: 04882262
Brand: Eaton Cutler-Hammer
Model #: BAB1040
Exact Tooling IR#: 04
Features and Benefits
Thermal-magnetic tripping mechanisms are designed with both a bi-metal switch and an electromagnet. They perform as a thermal breaker for low level overloads and perform as a magnetic breaker for instantaneous tripping mechanism at high levels.
| Product Specifications | |
|---|---|
| Circuit Breaker Type | Miniature Circuit Breaker |
| Amperage | 40 |
| Number of Poles | 1 |
| Tripping Mechanism | Thermal-Magnetic |
| Mounting Type | Bolt-on |
| Voltage | 120/240 VAC; 24 VDC; 48 VDC; 80 VDC |
| Wire Size (AWG) | 14-4 |
| Overall Depth (Inch) | 2-3/8 |
| Overall Height (Inch) | 2-15/16 |
| Overall Width (Inch) | 1 |
| Standards Met | CSA Listed; Federal Specification W-C-375b; UL Listed 489 |
