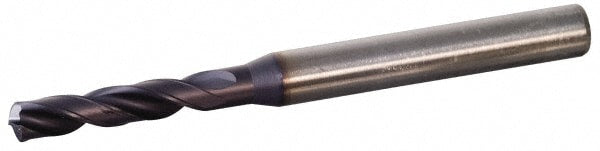

Screw Machine Length Drill Bit: 17/64" Dia, 140 deg Point, Solid Carbide
Item #: 48421572
Brand: Kennametal
Model #: 2649367
Product Specifications
| Drill Bit Size (Inch) | 17/64 |
| Drill Bit Size (Decimal Inch) | 0.2656 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 3.1100 |
| Series | B976A |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | TiAlN |
| Maximum Drilling Depth (Decimal Inch) | 0.9450 |
| Shank Length (Decimal Inch) | 1.4170 |
| Drill Point Length (mm) | 1.10 |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (Decimal Inch) | 1.3390 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
