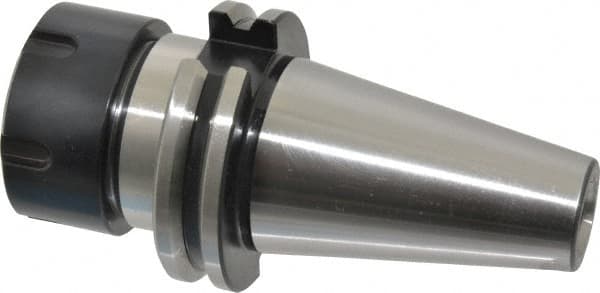

Parlec - 0.078" to 0.787" Capacity, 2.48" Projection, CAT40 Taper Shank, ER32 Collet Chuck - 0.0002" TIR, Through-Spindle
Item #: 04770459
Brand: Parlec
Model #: C40-32ERP248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 2.4800 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0780 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Nose Diameter (mm) | 50.00 |
| Maximum RPM | 25000 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9700 |
| Collet Nut Diameter (mm) | 50.00 |
