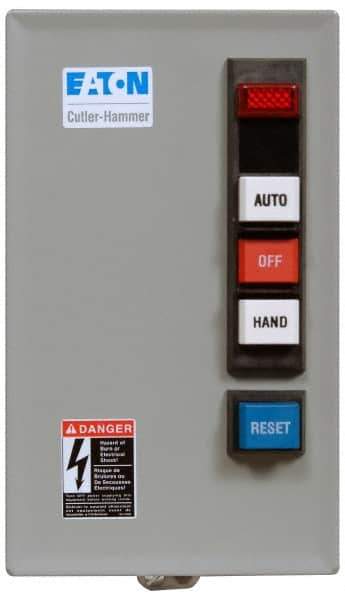

Eaton Cutler-Hammer - 208 Coil VAC, 90 Amp, NEMA Size 3, Nonreversible Enclosed Enclosure NEMA Motor Starter - 25 hp at 1 Phase, 1 Enclosure Rating
Item #: 04578936
Brand: Eaton Cutler-Hammer
Model #: ECN0531EAA
Exact Tooling IR#: 04
Features and Benefits
Enclosed housings are designed to ensure that the motor is never disconnected from power during starting. Ideal for frictional loads and prevention of electrical shocks and dust.
Non-reversing starters are designed with one phase line that connects to and runs voltage through the motor. The starter is used to turn a motor on and off.
NEMA 1 refers to enclosures constructed for indoor use. They provide a degree of protection from falling and other solid objects entering the enclosure.
| Product Specifications | |
|---|---|
| Amperage | 90 |
| NEMA Size | 3 |
| Coil Voltage | 208 VAC |
| Enclosure Type | Enclosed |
| Action | NonReversible |
| NEMA Enclosure Rating | 1 |
| Horsepower at 1 Phase | 25 |
| Overall Height (mm) | 660.10 |
| Overall Height (Decimal Inch) | 25.9900 |
| Overall Width (mm) | 296.20 |
| Overall Width (Decimal Inch) | 11.6600 |
| Overall Depth (mm) | 204 |
| Overall Depth (Decimal Inch) | 8.0300 |
| Standards Met | ABS Type Approved; cUL Listed; IEC 947 Type 2; OSHPD Certified (OSP-0015-10); UL Listed |
