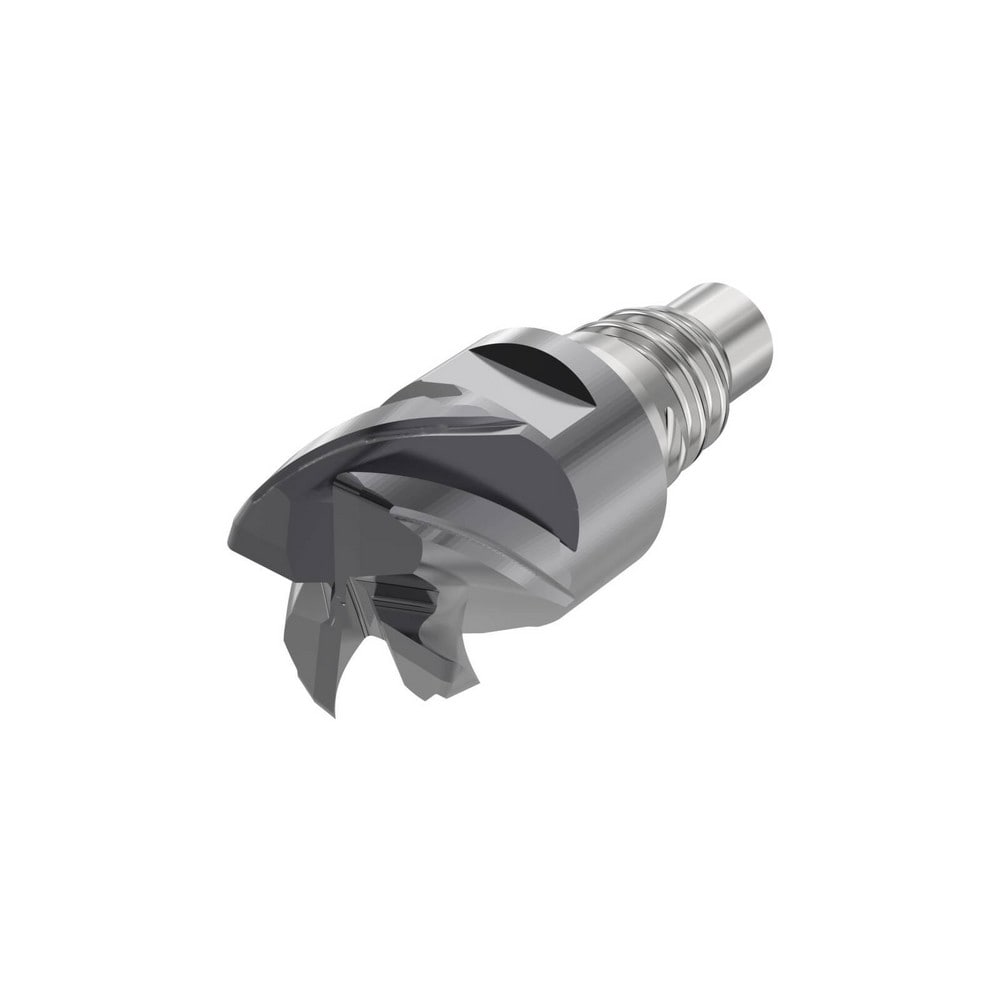

Slotting & Profile Milling Tip Insert: XSE550E25250D1R100Z4 SIRA, Solid Carbide
Item #: 88400189
Brand: Seco
Model #: 10219227
Product Specifications
| Milling Tip Type | Slotting; Profile |
| Milling Tip Style | XSE |
| Maximum Depth of Cut (mm) | 13.75 |
| Cutting Diameter (mm) | 25.00 |
| Tool Material | Solid Carbide |
| Manufacturer Grade | SIRA |
| Insert Hand | Right Hand |
| Chipbreaker | No |
| Series | XSE550 |
| Coating Process | PVD |
| Corner Radius (mm) | 1.00 |
| Cutting Width (mm) | 25.000 |
| Functional Length (mm) | 25.50 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO; ANSI |
| Milling Tip Full Description | XSE550E25250D1R100Z4 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 10219227 |
| Chamfer Angle | 0.000 |
| Insert Size | 25.00 mm |
| Length of Cut (mm) | 13.7500 |
| Helix Angle | 48 |
| Coolant Through | No |
| Overall Length (mm) | 49.5000 |
| Material Grade | Carbide |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 4 |
| Country of Origin | UNITED STATES |
