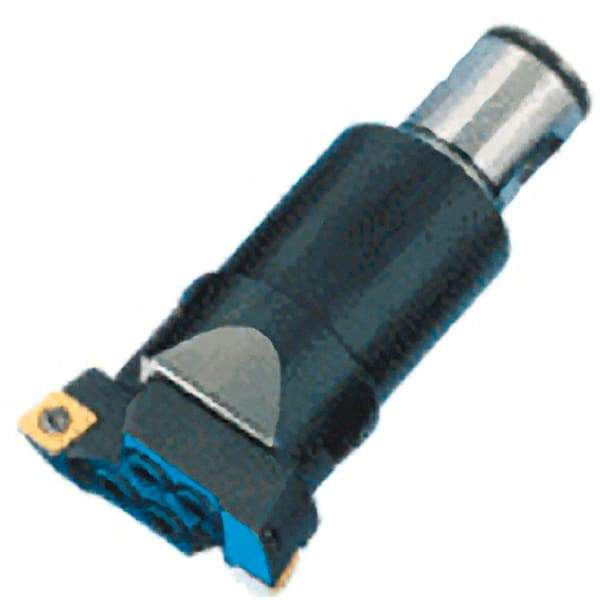

Iscar - 72mm Body Diam, Manual Twin Cutter Boring Head - 90mm to 120mm Bore Diam
Item #: 04309795
Brand: Iscar
Model #: 4559099
Exact Tooling IR#: 04
Features and Benefits
Boring heads with two cutters (double edges) are used for roughing operations and can remove material twice as fast as single edge cutters .
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Twin Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 72.00 |
| Body Diameter (Decimal Inch) | 2.8346 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | MB50 |
| Series | Itsbore |
| Minimum Bore Diameter (Decimal Inch) | 3.5433 |
| Minimum Bore Diameter (mm) | 90.00 |
| Maximum Bore Diameter (mm) | 120.00 |
| Maximum Bore Diameter (Decimal Inch) | 4.7244 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1496 |
