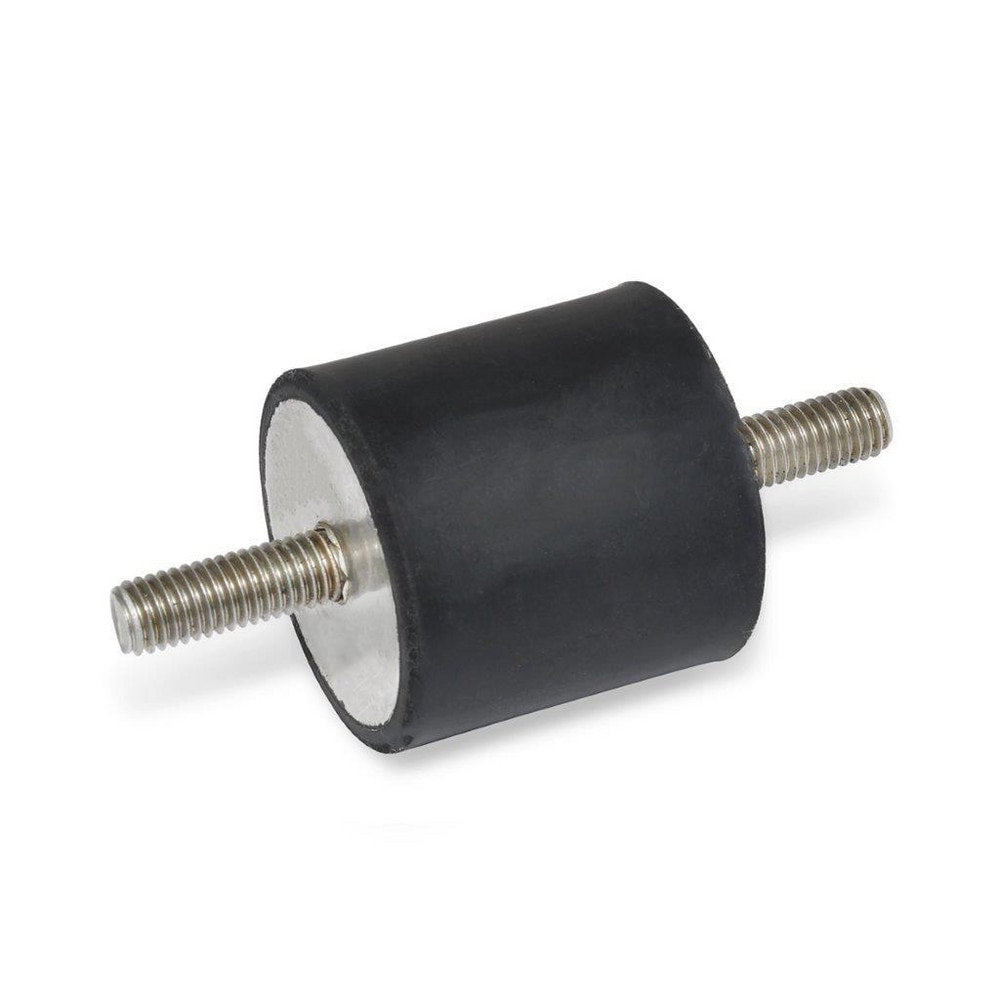

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 1334.50 N; Top Diameter: 38.00; Bottom Diameter: 38; Thread Size: 3/8-16; Overall Width: 38 mm
Item #: 67914309
Brand: J.W. Winco
Model #: 451.1-38-25-3/8-55
Product Specifications
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1334.50 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 38 |
| Thread Size | 3/8-16 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.587 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 57 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1334.50 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 38 |
| Thread Size | 3/8-16 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.587 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 57 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 67914309 |
| Mfr Part # | 451.1-38-25-3/8-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
