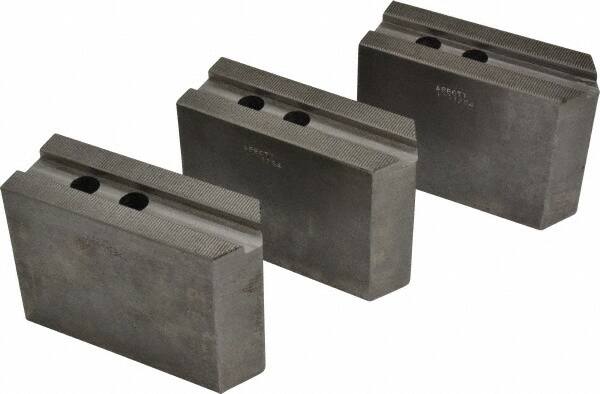

Abbott Workholding Products - 12" & Up Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 1.1811" Btw Mount Hole Ctrs, 5-1/2" Long x 2" Wide x 4" High, 0.7087" Groove, 0.5512" & 14mm Fastener
Item #: 04231163
Brand: Abbott Workholding Products
Model #: KTT12S4
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 12.0000 |
| Maximum Compatible Chuck Diameter (mm) | 304.80 |
| Overall Height (mm) | 101.60 |
| Overall Height (Inch) | 4 |
| Groove Width (mm) | 18.00 |
| Groove Width (Decimal Inch) | 0.7087 |
| Distance Between Mount Hole Centers (mm) | 30.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1811 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | 14.00 |
| Fastener Size (Decimal Inch) | 0.5512 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 50.80 |
| Overall Width/Diameter (Inch) | 2 |
| Overall Width/Diameter (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Length (mm) | 139.70 |
| Material Grade | 1018 |
