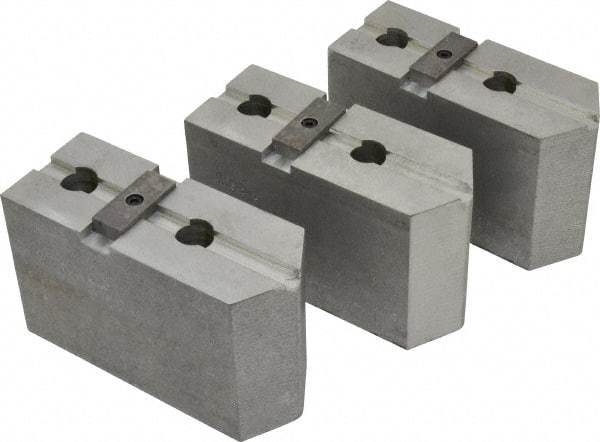

Abbott Workholding Products - 15 to 18" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Aluminum, 3" Btw Mount Hole Ctrs, 6-1/2" Long x 2-1/2" Wide x 4" High, 1/2" Groove, 3/4" Fastener
Item #: 04226718
Brand: Abbott Workholding Products
Model #: TG15HDA1
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Aluminum |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 18 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 18.0000 |
| Maximum Compatible Chuck Diameter (mm) | 457.20 |
| Minimum Compatible Chuck Diameter (mm) | 381.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 15.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Overall Height (mm) | 101.60 |
| Overall Height (Inch) | 4 |
| Groove Width (mm) | 12.70 |
| Groove Width (Decimal Inch) | 0.5000 |
| Distance Between Mount Hole Centers (mm) | 76.20 |
| Distance Between Mount Hole Centers (Decimal Inch) | 3.0000 |
| Tongue Width (Decimal Inch) | 0.7500 |
| Jaw End Shape | Pointed |
| Fastener Size (Inch) | 3/4 |
| Fastener Size (Decimal Inch) | 0.7500 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 63.50 |
| Overall Width/Diameter (Inch) | 2-1/2 |
| Overall Width/Diameter (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (Decimal Inch) | 6.5000 |
| Overall Length (mm) | 165.10 |
| Material Grade | 6061-T6 |
