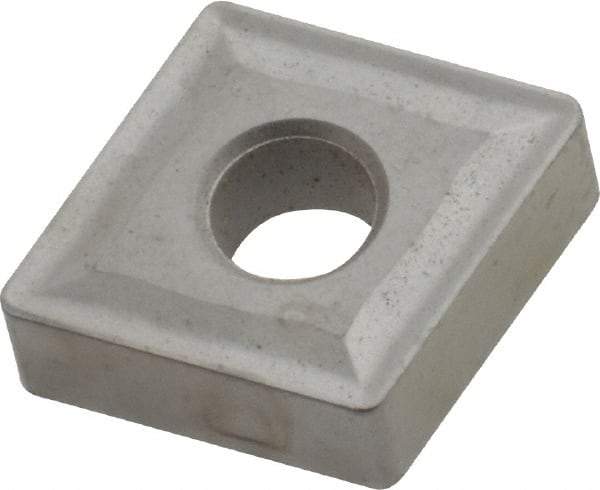

Value Collection - CNMG432 Grade I55 Carbide Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius, 12.9mm Long
Item #: 04144226
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Length (mm) | 12.90 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | I55 |
| Coating | Uncoated |
| Material Grade | C5/C6 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Relief Angle | 0 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
