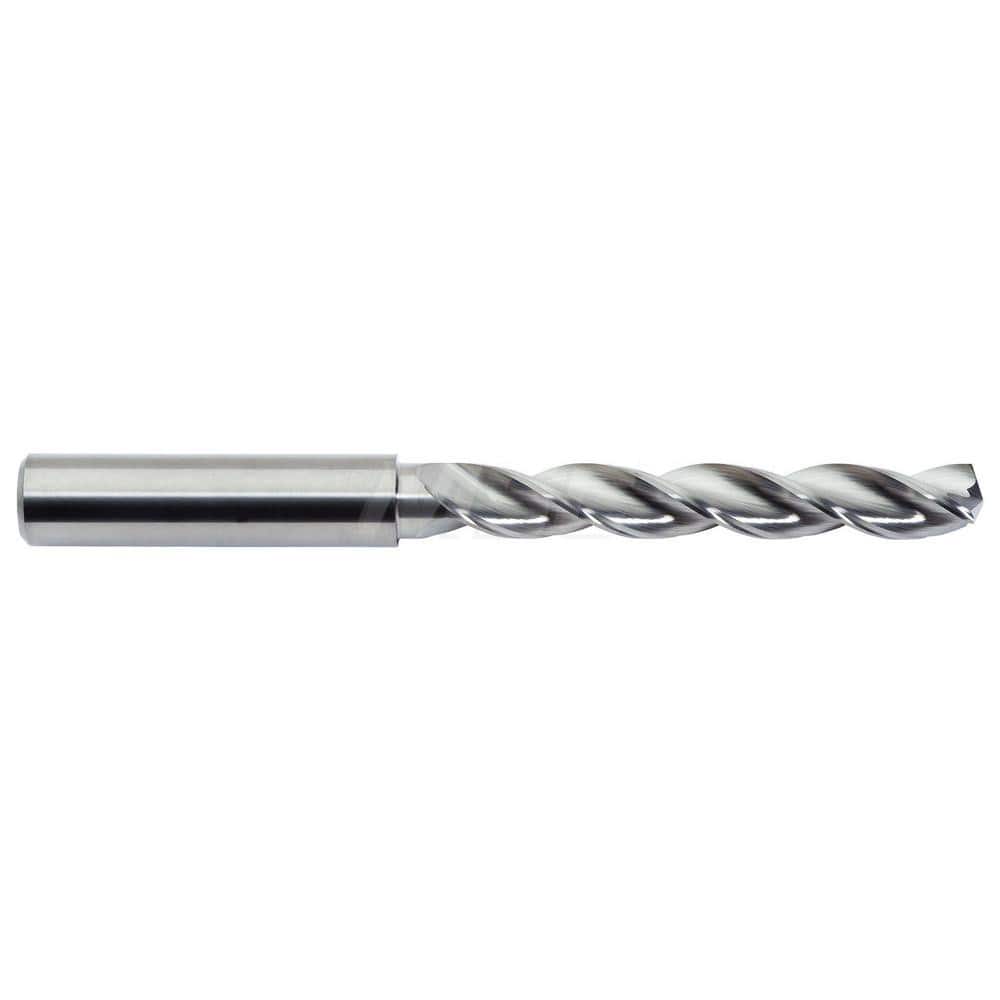

Jobber Length Drill Bit: 0.5709″ Dia, 150 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 229
Item #: 04124053
Brand: M.A. Ford?
Model #: 22957090
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5709 |
| Drill Bit Size (mm) | 14.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 150 |
| Spiral Type | Regular |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 3 |
| Overall Length (mm) | 133.00 |
| Flute Length (mm) | 83.00 |
| Series | 229 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (mm) | 63.00 |
| Drill Point Length (mm) | 1.75 |
| Drill Bit Diameter Tolerance | 0.0003 to 0.0010 in; 0.007 to 0.025 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | DIN 6537 L; ISO 9001:2015 Certified |
| Specification Number | DIN 6537L |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| Specification Designation | DIN |
