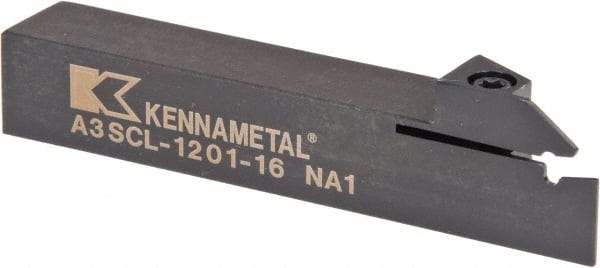

Kennametal - A3SC, Left Hand Cut, 1.65" Max Workpc Diam, A2016... Insert, Indexable Cutoff Toolholder - 0.63 Max Depth of Cut, 3/4" Shank Width, 3/4" Shank Height, 114.3mm OAL
Item #: 04102638
Brand: Kennametal
Model #: 1806724
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6500 |
| Series | A3 |
| Toolholder Style | A3SC |
| Insert Compatibility | A2016... |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Insert Seat Size | 1 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Insert Width (Decimal Inch) | 0.0630 |
| Head Height (mm) | 26.42 |
| Head Height (Decimal Inch) | 1.0400 |
| Head Length (mm) | 29.97 |
| Head Length (Decimal Inch) | 1.1800 |
