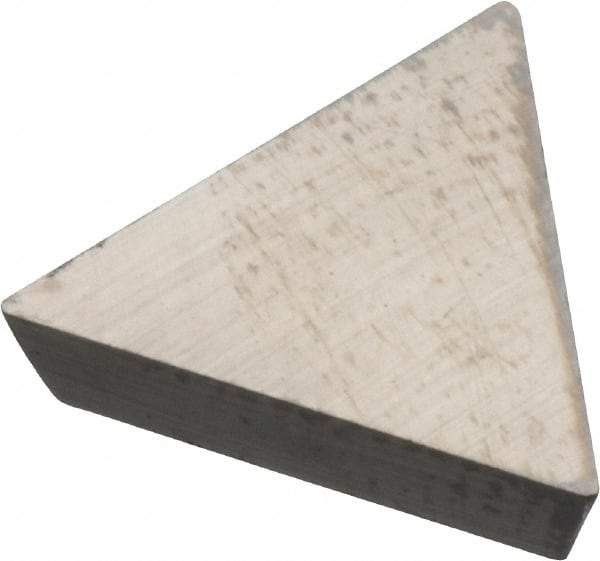

Interstate - TPEE730 Grade I55 Carbide Turning Insert - Uncoated, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 04007027
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPEE |
| Insert Size | 730 |
| Material | Carbide |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | I55 |
| Coating | Uncoated |
| Material Grade | C5 |
| Rake | Positive |
| Relief Angle | 11 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
