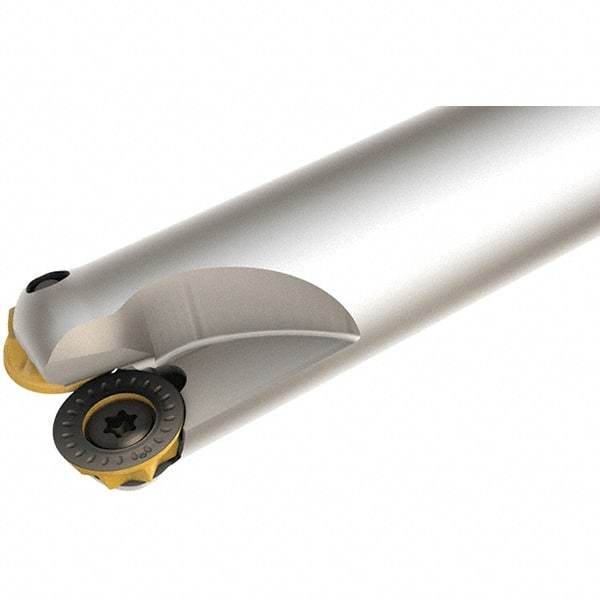

Iscar - 0.38" Cutting Diam, 3/4" Shank Diam, 3/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RXCR, RXCW, RXMT 10 Insert, ER Toolholder
Item #: 03979960
Brand: Iscar
Model #: 3102045
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 2 |
| Insert Style | RXCR; RXCW; RXMT 10 |
| Toolholder Style | ER |
| Series | RoundMill |
| Overall Length (Decimal Inch) | 6.5000 |
| Insert Diameter (Decimal Inch) | 0.3940 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.5000 |
| Shank Length (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
