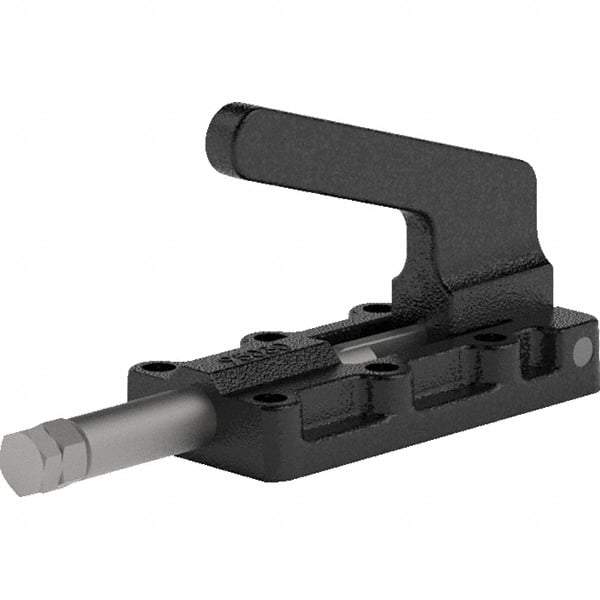

De-Sta-Co - 550 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 6 Mounting Holes, 0.22" Mounting Hole Diam, 0.39" Plunger Diam, Straight Handle
Item #: 03860020
Brand: De-Sta-Co
Model #: 95030
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 2446.52 |
| Load Capacity (Lb.) | 550.00 |
| Plunger Travel (mm) | 24.89 |
| Plunger Travel (Decimal Inch) | 0.9800 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M6x1.00 |
| Plunger Centerline Height (mm) | 7.62 |
| Plunger Centerline Height (Decimal Inch) | 0.3000 |
| Plunger Diameter (Decimal Inch) | 0.3900 |
| Plunger Diameter (mm) | 9.91 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 4.1300 |
| Overall Height (Decimal Inch) | 2.2000 |
| Base Length (Decimal Inch) | 3.0900 |
| Base Width (Decimal Inch) | 1.4000 |
| Handle Color | Black |
| Number of Mounting Holes | 6 |
| Length Distance Between Mount Holes (mm) | 25.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.9800 |
| Width Distance Between Mount Holes (mm) | 24.89 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.9800 |
| Mounting Hole Diameter (mm) | 5.59 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Base Width (mm) | 35.56 |
| Base Length (mm) | 78.49 |
| Overall Length (mm) | 104.90 |
| Overall Height (mm) | 55.88 |
