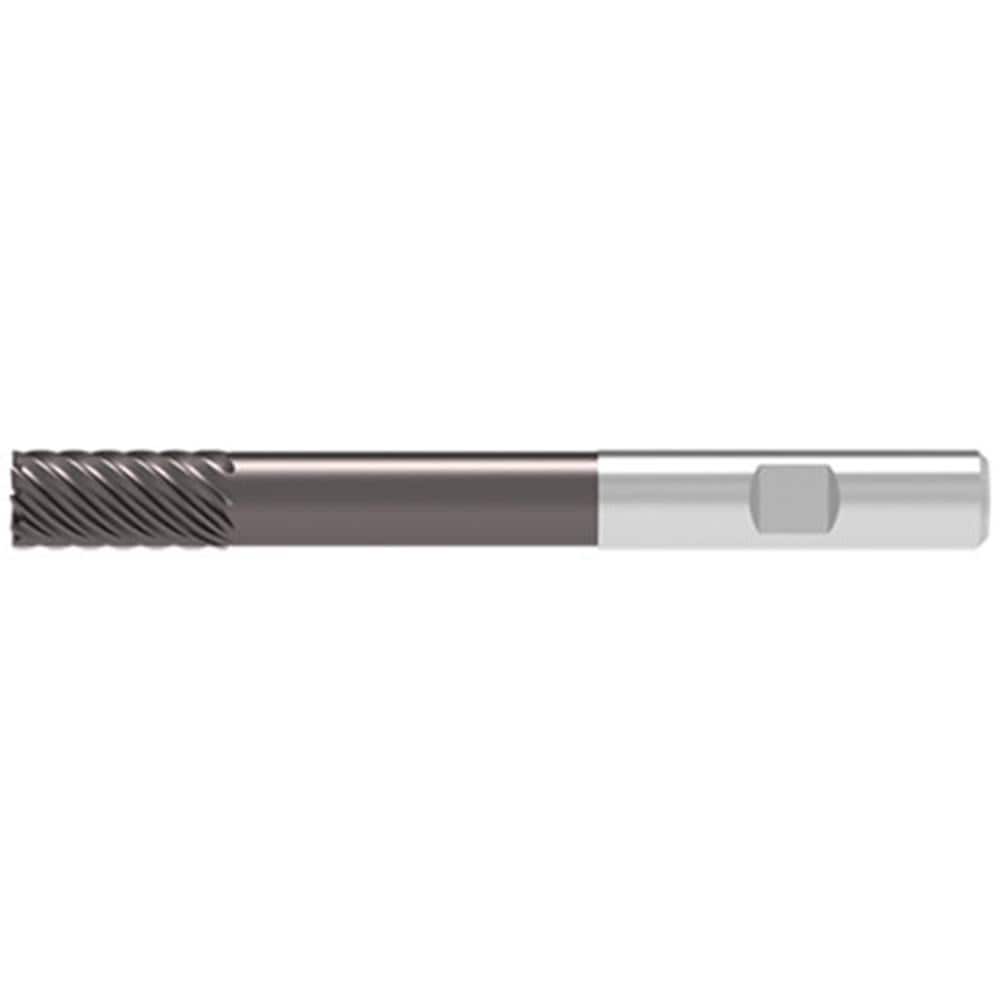

Square End Mill: 6 Flute, Solid Carbide
Item #: 74024399
Brand: WNT
Model #: 5407520400
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.8000 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 50.00 |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 150.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Ti1000 |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 48-50 |
| Coating/Finish | Ti1000 |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Weldon Flat |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.8000 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 50.00 |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 150.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Ti1000 |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 48-50 |
| Coating/Finish | Ti1000 |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Weldon Flat |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| MSC Part # | 74024399 |
| Mfr Part # | 5407520400 |
| Country of Origin Country of Origin is subject to change | Germany |
