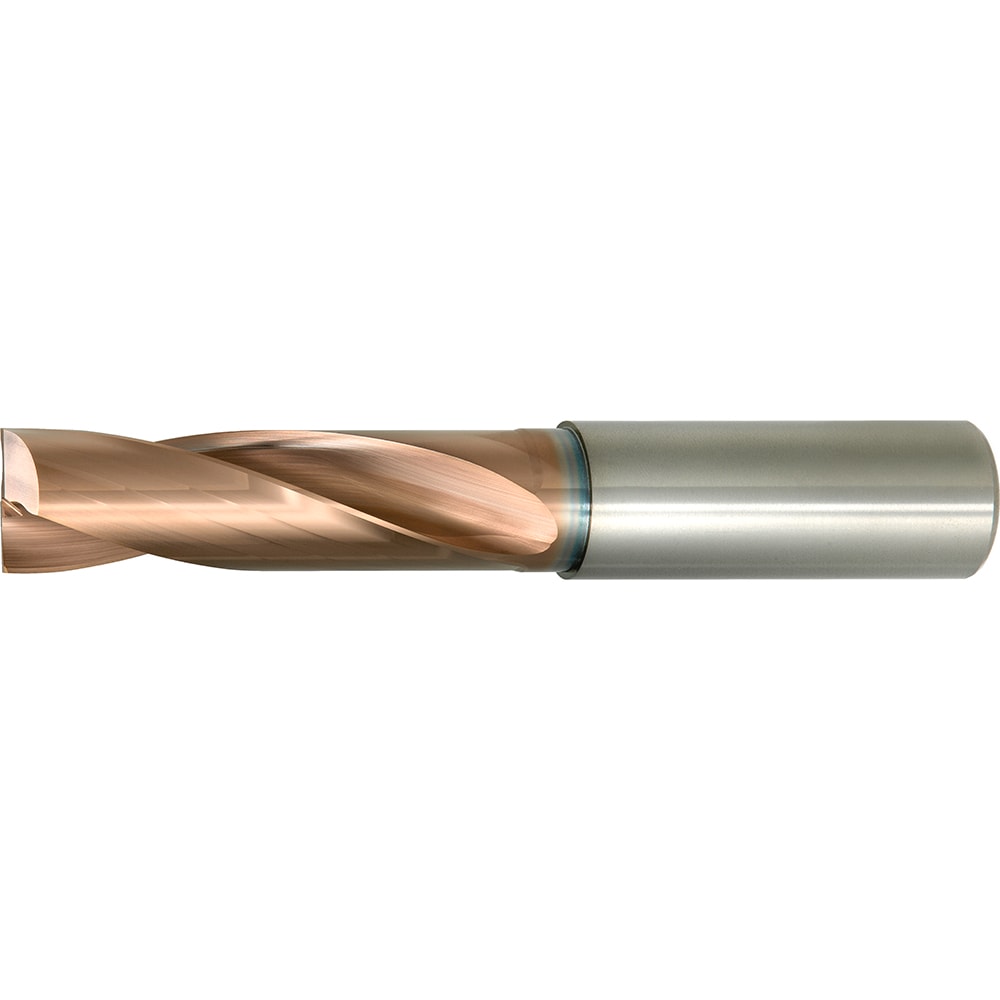

Extra Length Drill Bit: 0.6406", 180 °, Carbide
Item #: 73057283
Brand: Mitsubishi
Model #: 10562772
Product Specifications
| Drill Bit Size (Inch) | 41/64 |
| Drill Bit Size (mm) | 16.27 |
| Overall Length (mm) | 119.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 180 |
| Flute Length (mm) | 65.99 |
| Point Type | X-Thinning |
| Series | MFE |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Bronze; Aluminum; Brass; Carbon Steel; Iron; Aluminum Alloy; Steel; High Strength Bronze; Tempered Steel; Stainless Steel; Cast Iron; Structural Steel; Superalloys & Titanium; Copper; Hardened Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.6406 |
| Overall Length (Decimal Inch) | 4.6850 |
| Shank Diameter (Decimal Inch) | 0.709 |
| Shank Diameter (mm) | 18.0000 |
| Shank Length (Decimal Inch) | 1.9690 |
| Shank Length (mm) | 50.010 |
| Flute Length (Decimal Inch) | 2.5980 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 1.2800 |
| Maximum Drilling Depth (mm) | 32.51 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Drill Bit Size (Inch) | 41/64 |
| Drill Bit Size (mm) | 16.27 |
| Overall Length (mm) | 119.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 180 |
| Flute Length (mm) | 65.99 |
| Point Type | X-Thinning |
| Series | MFE |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Bronze; Aluminum; Brass; Carbon Steel; Iron; Aluminum Alloy; Steel; High Strength Bronze; Tempered Steel; Stainless Steel; Cast Iron; Structural Steel; Superalloys & Titanium; Copper; Hardened Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.6406 |
| Overall Length (Decimal Inch) | 4.6850 |
| Shank Diameter (Decimal Inch) | 0.709 |
| Shank Diameter (mm) | 18.0000 |
| Shank Length (Decimal Inch) | 1.9690 |
| Shank Length (mm) | 50.010 |
| Flute Length (Decimal Inch) | 2.5980 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 1.2800 |
| Maximum Drilling Depth (mm) | 32.51 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| MSC Part # | 73057283 |
| Mfr Part # | 10562772 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
