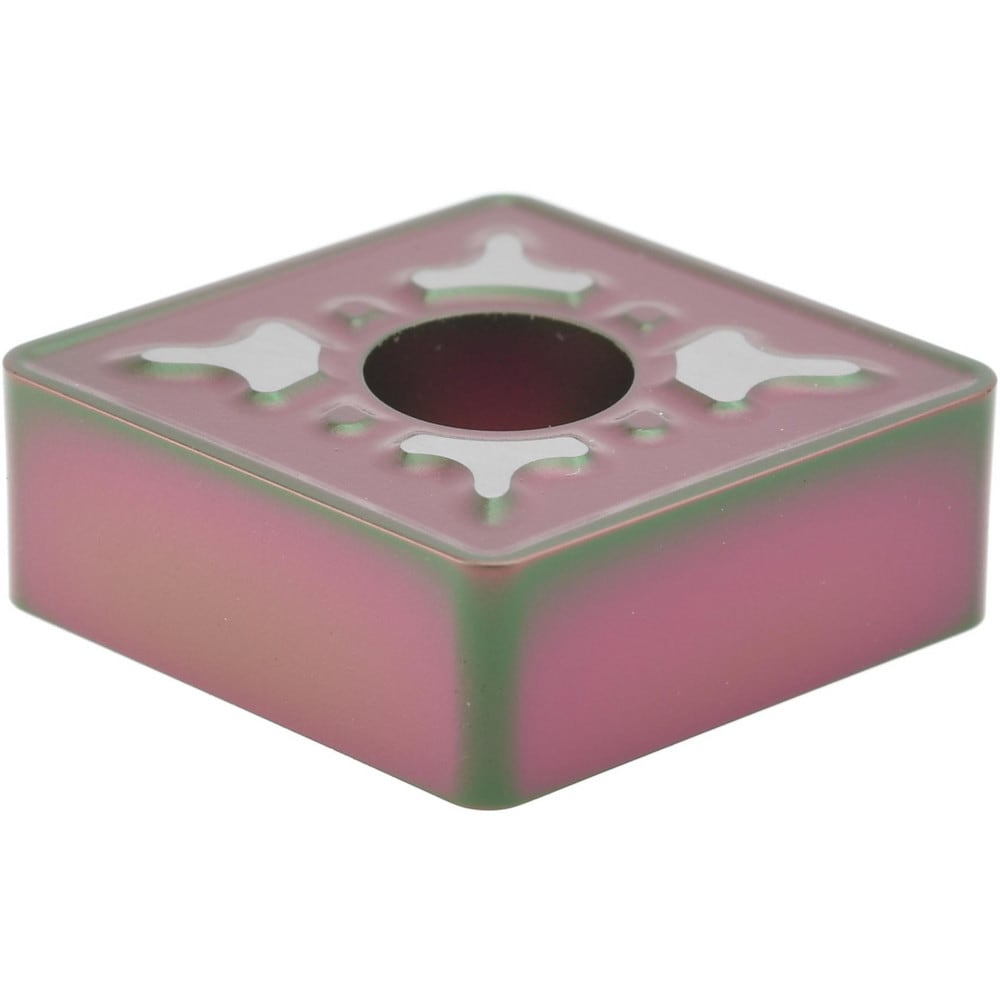

Turning Insert: CNMG160612909+ ACP35M, Carbide
Item #: 75548370
Brand: Accupro
Model #: 75548370
Product Specifications
| ANSI Insert Code | CNMG543 |
| ISO Insert Code | CNMG160612 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80 |
| Manufacturer Grade | ACP35M |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2512 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Insert Holding Method | Pin; Screw; Clamp; Lever Lock |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; S; M |
| Standards | ANSI Code: CNMG543 |
| Chip Breaker | 909+ |
| ANSI Size Code | 543 |
| ISO Size Code | 160612 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| Country of Origin | VARIOUS |
