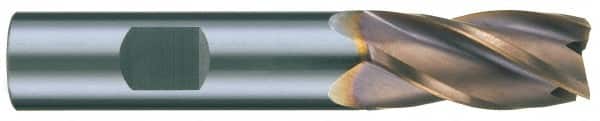

Corner Chamfer End Mill: 0.5″ Dia, 1″ LOC, 4 Flute, 0.006 to 0.009″ Chamfer Width, Solid Carbide 3″ OAL, 1/2″ Shank Dia, 30 ° Helix, AlTiN Coated, Centercutting
Item #: 03516135
Brand: RobbJack
Model #: ST-434-16-A
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Chamfer Width (Decimal Inch) | 0.0060 to 0.0090 |
| Mill Diameter (Inch) | 1/2 |
| Chamfer Angle | 45 |
| Length of Cut (Inch) | 1 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Chamfer |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 30 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Mill Diameter Tolerance | +0.001 to -0.000 in |
| Shank Diameter Tolerance | -0.0001 to -0.0002 in |
| Overall Length Tolerance | +0.060 to -0.060 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | ST-434 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
