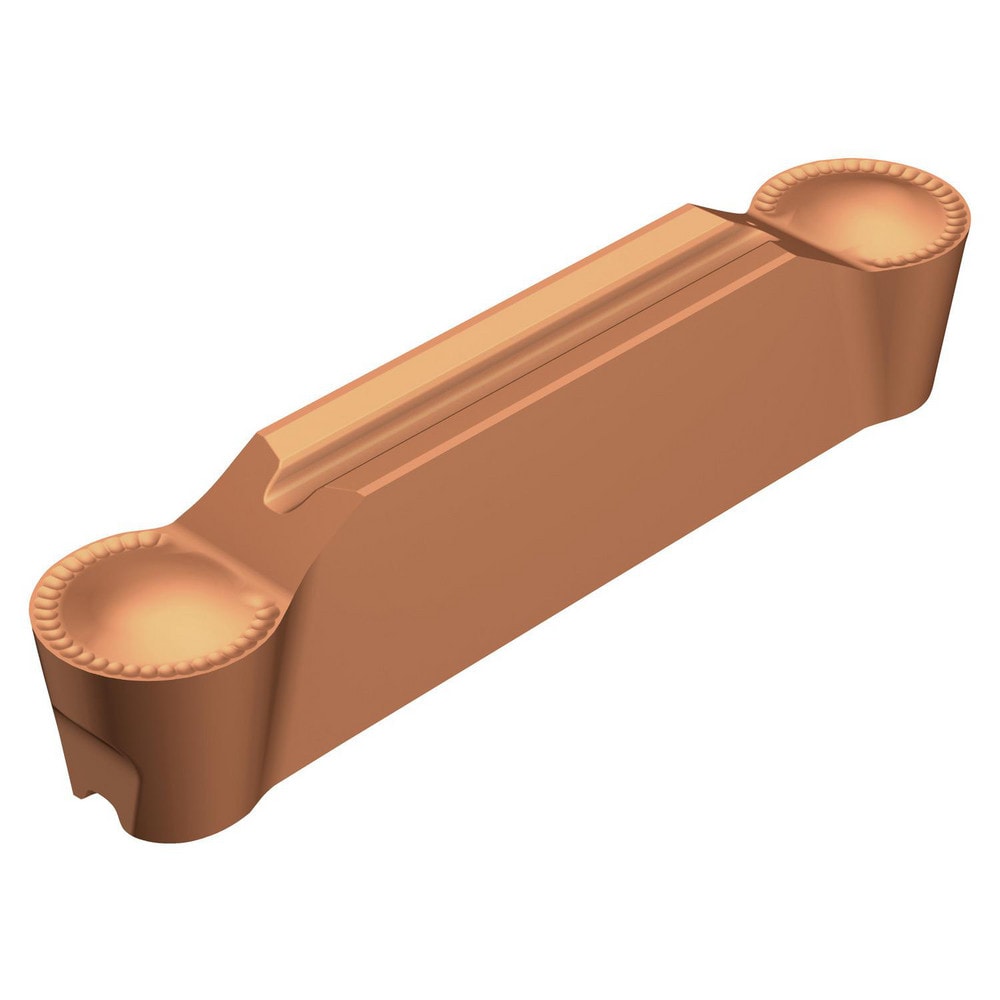

Profiling Insert: C2I-F2N-0300-RM 1225, 4.3300 mm Thickness
Item #: 96436225
Brand: Sandvik Coromant
Model #: 8290290
Product Specifications
| Insert Style | C2I |
| Insert Size Code | F2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1225 |
| Thickness (mm) | 4.3300 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Maximum Depth of Cut (mm) | 1.30 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Relief Angle | 7.000 |
| Chipbreaker | RM |
| Series | CoroCut 2 |
| Coating Process | PVD |
| Insert Length (Decimal Inch) | 0.7904 |
| Insert Length (mm) | 20.08 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-F2N-0300-RM 1225 |
| Standards | ISO |
| Rake Angle | 0.000 |
| Side Length (Decimal Inch) | 0.7904 |
| Side Length (mm) | 20.08 |
| Applications | Profiling |
| Coating/Finish | TiAlN/TiAlSiN/TiSiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1706 |
| Width (Decimal Inch - 4 Decimals) | 0.1181 |
| Width (mm - 2 Decimals) | 3.00 |
| UNSPSC Code | 23242105 |
| Country of Origin | Sweden |
