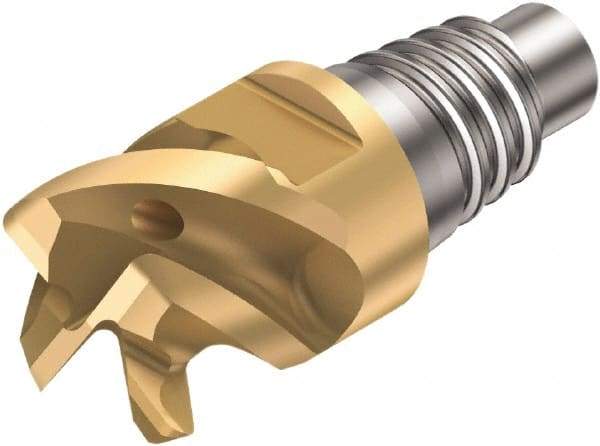

Sandvik Coromant - A316..SM P Grade 1030 Carbide End Milling Tip Insert - TiAlN Finish, 4 Flutes, 19.05mm Cutting Diam, 11.5mm Depth of Cut, 21.3mm Extension, 0.032" Cnr Rad, 50° Helix
Item #: 03451879
Brand: Sandvik Coromant
Model #: 6223991
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | A316..SM |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 11.50 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Corner Radius (Decimal Inch) | 0.032 |
| Coating Process | PVD |
| Chipbreaker | P |
| Extension From Holder (mm) | 21.30 |
| Extension From Holder (Decimal Inch) | 0.8386 |
| Helix Angle | 50 |
| Style | A316..SM..C..P |
| Manufacturers Catalog Number | A316-20SM450C07508P 1030 |
