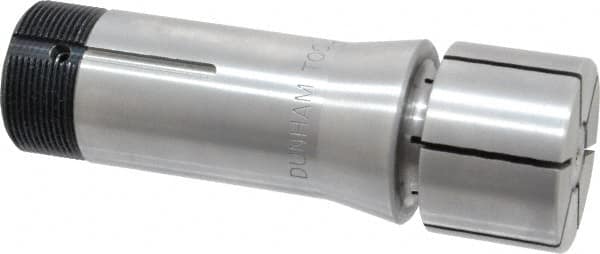

Dunham - 1-1/2 Inch Head Diameter, 5C Expanding Collet - 4.49 Inch Overall Length, Steel, 0.0005 Inch TIR
Item #: 03388618
Brand: Dunham
Model #: CC1510
Exact Tooling IR#: 04
Features and Benefits
Expanding collets are used grip the inside diameter of a workpiece so that the outside diameter of the workpiece can be machined.
| Product Specifications | |
|---|---|
| Type | Expanding |
| Head Diameter (Inch) | 1-1/2 |
| Head Diameter (Decimal Inch) | 1.5000 |
| Minimum Grip (Inch) | 3/4 |
| Minimum Grip (Decimal Inch) | 0.7500 |
| Maximum Grip (Inch) | 1-7/16 |
| Maximum Grip (Decimal Inch) | 1.4375 |
| Head Length (Inch) | 1 |
| Head Length (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.4900 |
| External Thread Size | 1.240-20 |
| Material | Steel |
| TIR (Decimal Inch) | 0.000500 |
| PSC Code | 5136 |
