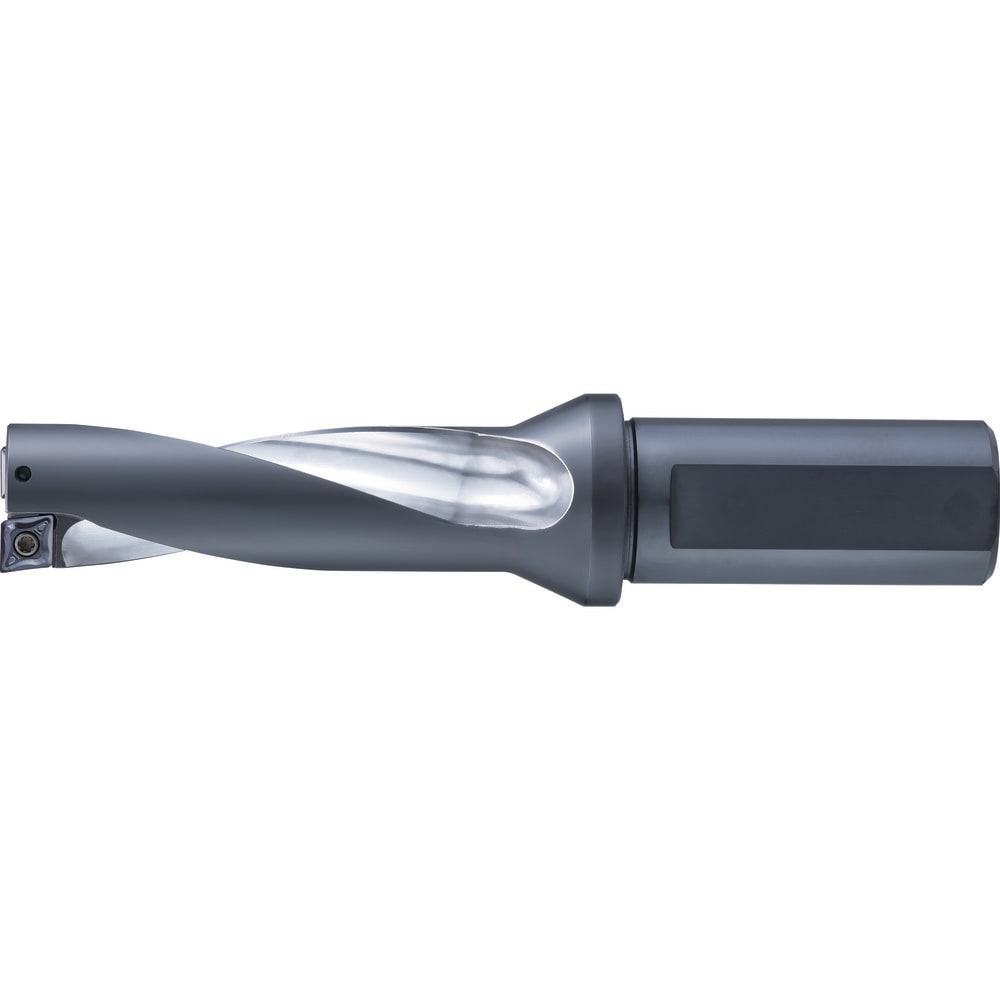

Indexable Insert Drill: PDZ4100FS40M13-3D, 41.00 mm Max Dia, 123.00 mm Max Depth, 3xD, 40.00 mm Shank Dia
Item #: 62084009
Brand: OSG
Model #: 7803858
Product Specifications
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (mm) | 41.00 |
| Maximum Drill Depth (mm) | 123.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 130508 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78538 |
| Flute Length (mm) | 123.00 |
| Body Length | 153.00 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291531 |
| Insert Compatibility | ZPNT130508 |
| Collar Diameter (Decimal Inch) | 1.6142 |
| Collar Diameter (mm) | 41.00 |
| Coolant Through | Yes |
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (mm) | 41.00 |
| Maximum Drill Depth (mm) | 123.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 130508 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78538 |
| Flute Length (mm) | 123.00 |
| Body Length | 153.00 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291531 |
| Insert Compatibility | ZPNT130508 |
| Collar Diameter (Decimal Inch) | 1.6142 |
| Collar Diameter (mm) | 41.00 |
| Coolant Through | Yes |
| MSC Part # | 62084009 |
| Mfr Part # | 7803858 |
| Country of Origin Country of Origin is subject to change | Japan |
