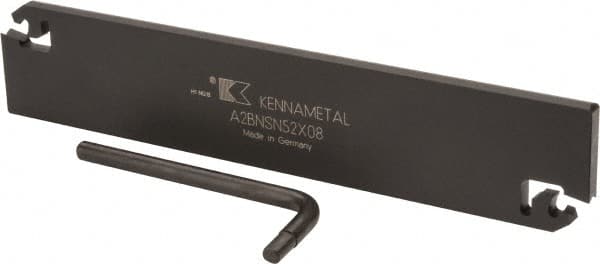

Kennametal - 2.0472" Blade Height, 0.2756" Blade Width, 10.2362" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 120mm Max Depth of Cut, A2BNSN Blade, A2 Cut-Off Series
Item #: 03311305
Brand: Kennametal
Model #: 1245553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 52.00 |
| Blade Height (Decimal Inch) | 2.0472 |
| Blade Width (mm) | 7.00 |
| Blade Width (Decimal Inch) | 0.2756 |
| Blade Overall Length (mm) | 260.00 |
| Blade Overall Length (Decimal Inch) | 10.2362 |
| Blade Style | A2BNSN |
| Insert Style | A2 080... |
| Insert Width (mm) | 8.00 |
| Insert Width (Decimal Inch) | 0.3150 |
| Series | A2 Cut-Off |
| Insert Seat Size | 8 |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (mm) | 120.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.7200 |
| Cutting Height (mm) | 45.20 |
| Cutting Height (Decimal Inch) | 1.7795 |
