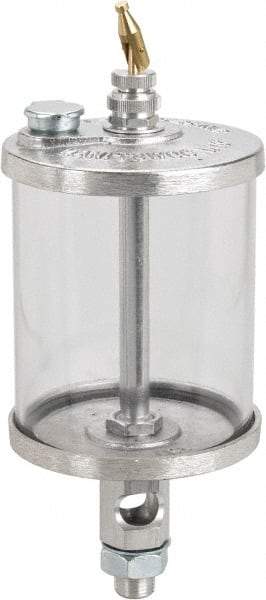

LDI Industries - 1 Outlet, Polymer Bowl, 0.47 L Manual-Adjustable Oil Reservoir - 5/8-18 UNF Outlet, 3-1/2" Diam x 8-15/16" High, 71.11°C Max
Item #: 03240249
Brand: LDI Industries
Model #: RDF109-08
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Manual-Adjustable Oil Reservoir |
| Number of Outlets | 1 |
| Bowl Material | Polymer |
| Capacity Range | 16 oz. - 31.9 oz. |
| Mount Type | Remote Mount |
| Outlet Thread Size | 5/8-18 |
| Outlet Thread Type | UNF |
| Capacity (pt.) | 1 |
| Capacity (L) | 0.47 |
| Diameter (mm) | 88.90 |
| Diameter (Inch) | 3-1/2 |
| Diameter (Decimal Inch) | 3.5000 |
| Height (mm) | 227.01 |
| Height (Inch) | 8-15/16 |
| Height (Decimal Inch) | 8.9375 |
| Maximum Operating Temperature (F) | 160.00 |
| Maximum Operating Temperature (C) | 71.11 |
| Components Material | Aluminum |
