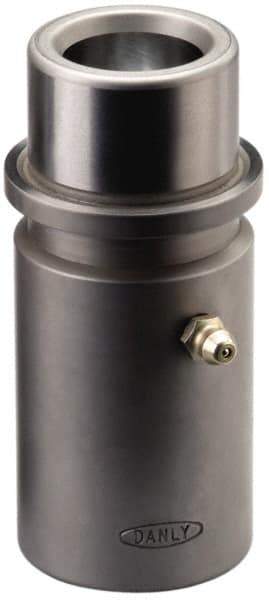

Dayton Lamina - 2-1/2" ID x 4-7/8" OAL, Steel, Bronze Plated Die & Mold Shoulder Bushing - Extra Long Shoulder, 3.659" Bottom OD, 3-1/4" Top OD, 3.814" Collar OD, 3" Under Collar, 1-7/8" Above Collar
Item #: 03224979
Brand: Dayton Lamina
Model #: 6-20-28
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Material | Steel |
| Inside Diameter (Inch) | 2-1/2 |
| Inside Diameter (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 4-7/8 |
| Overall Length (Decimal Inch) | 4.8750 |
| Body Type | Extra-Long Shoulder |
| Bottom Outside Diameter (Decimal Inch) | 3.6590 |
| Top Outside Diameter (Inch) | 3-1/4 |
| Top Outside Diameter (Decimal Inch) | 3.2500 |
| Attachment Method | Demountable |
| Lubrication Type | Non-Self Lubricating |
| Bushing Type | Friction |
| Collar Outside Diameter (Decimal Inch) | 3.8140 |
| Length Above Collar (Inch) | 1-7/8 |
| Length Under Collar (Inch) | 3 |
| Clamp Compatibility | 6-91-1 |
| Finish/Coating | Bronze Plated |
