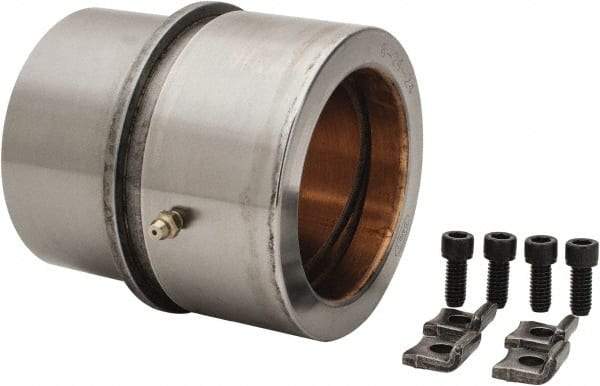

Dayton Lamina - 3" ID x 4-3/8" OAL, Steel, Bronze Plated Die & Mold Shoulder Bushing - Shoulder, 4.19" Bottom OD, 3-3/4" Top OD, 4.283" Collar OD, 2-1/2" Under Collar, 1-7/8" Above Collar
Item #: 03224847
Brand: Dayton Lamina
Model #: 6-24-24
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Material | Steel |
| Inside Diameter (Inch) | 3 |
| Inside Diameter (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 4-3/8 |
| Overall Length (Decimal Inch) | 4.3750 |
| Body Type | Shoulder |
| Bottom Outside Diameter (Decimal Inch) | 4.1900 |
| Top Outside Diameter (Inch) | 3-3/4 |
| Top Outside Diameter (Decimal Inch) | 3.7500 |
| Attachment Method | Demountable |
| Lubrication Type | Non-Self Lubricating |
| Bushing Type | Friction |
| Collar Outside Diameter (Decimal Inch) | 4.2830 |
| Length Above Collar (Inch) | 1-7/8 |
| Length Under Collar (Inch) | 2-1/2 |
| Clamp Compatibility | 6-91-1 |
| Finish/Coating | Bronze Plated |
