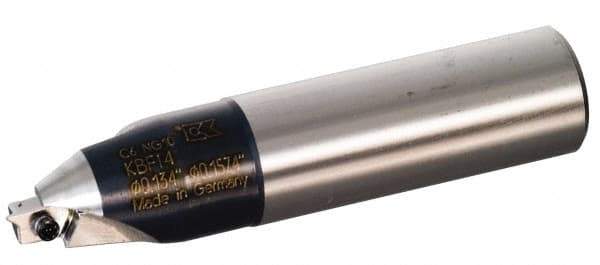

Kennametal - 9/32 to 5/16" Diam, Straight Shank, 19.05mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 8mm Drill Shank Diam, 3.41020R901 Insert, 3.74" OAL
Item #: 03160942
Brand: Kennametal
Model #: 1246703
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (Decimal Inch) | 0.3125 |
| Minimum Drill Diameter (Decimal Inch) | 0.2813 |
| Body Shank Diameter (mm) | 19.05 |
| Body Shank Diameter (Decimal Inch) | 0.7500 |
| Drill Shank Diameter (mm) | 8.00 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.41020R901 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 0.7240 |
| Overall Length (Decimal Inch) | 3.7400 |
| Included Angle | 90 |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 1.9700 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Series | BF |
| Includes | Screw; Wrench |
