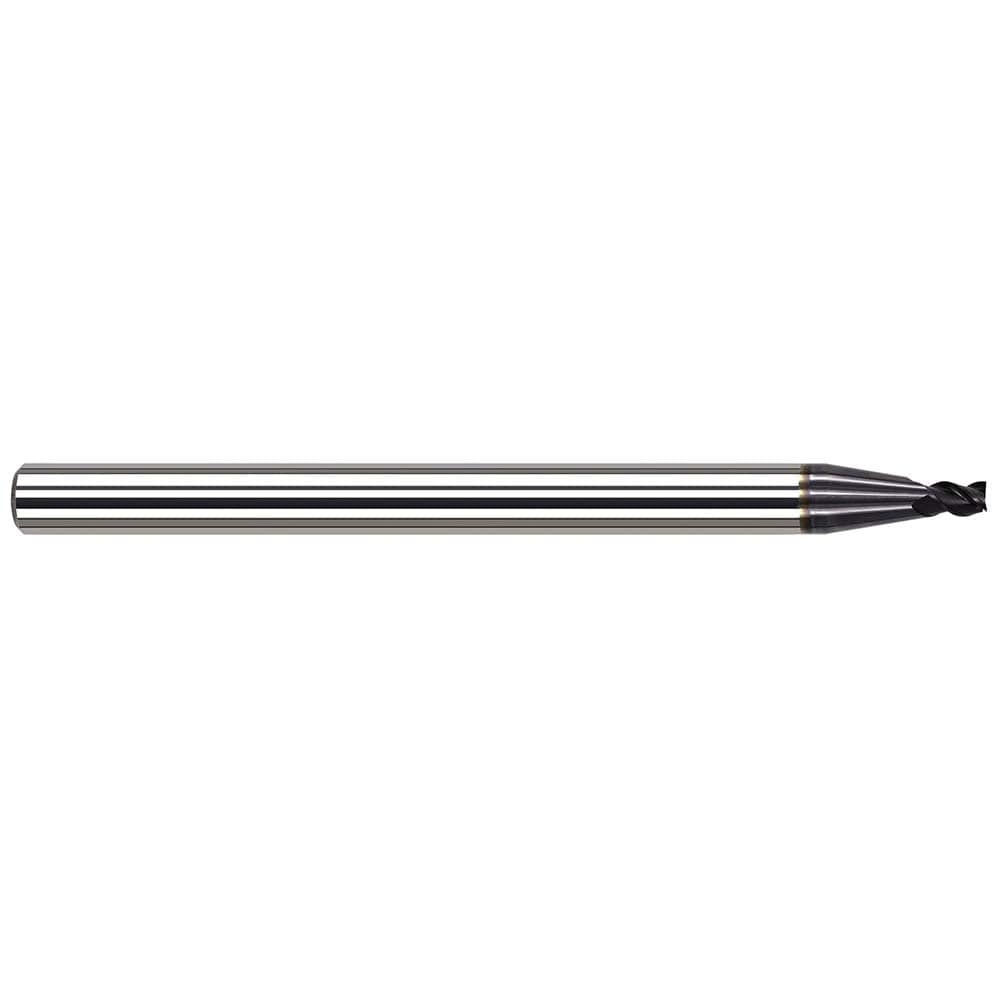

Square End Mill: 9/64" Dia, 5 Flute, Solid Carbide
Item #: 05686167
Brand: Harvey Tool
Model #: 747109-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1406 |
| Mill Diameter (Inch) | 9/64 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.2200 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN Nano |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 34 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H; K; M |
| Coating/Finish | AlTiN Nano |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | Variable Helix End Mills for High Temp Alloys - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
