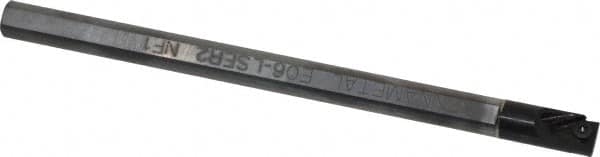

Kennametal - Internal Thread, Right Hand Cut, 9.53mm Shank Width x 3/8" Shank Height Indexable Threading Toolholder - 152.4mm OAL, LT 11NR Insert Compatibility, E06 Toolholder, Series LT Threading
Item #: 03136959
Brand: Kennametal
Model #: 1152676
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 9.53 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Height (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Insert Compatibility | LT 11NR |
| Series | LT Threading |
| Toolholder Style | E06 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2800 |
| Center to Cutting Edge (Decimal Inch) | 0.2800 |
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Toolholder Material | Carbide |
