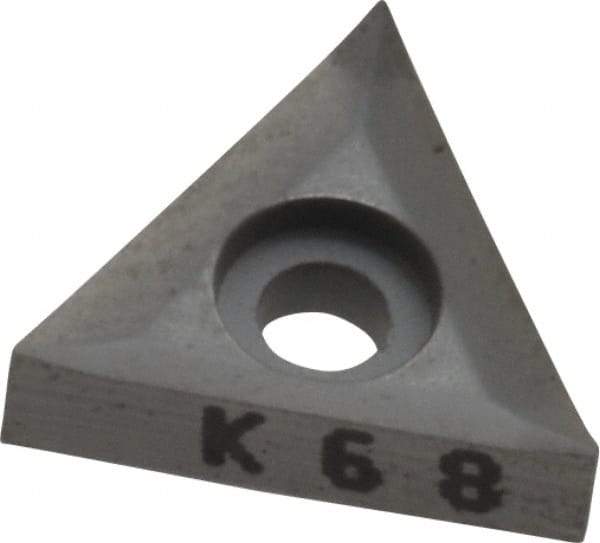

Kennametal - T220 F Grade K68 Carbide Turning Insert - Uncoated, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 0.004" Corner Radius
Item #: 03057999
Brand: Kennametal
Model #: 1163034
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T |
| Insert Size | 220 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | K68 |
| Coating | Uncoated |
| Material Grade | C3 |
| Chip Breaker | F |
| Hole Diameter (mm) | 2.40 |
| Hole Diameter (Decimal Inch) | 0.0945 |
| Rake | Positive |
| Primary Workpiece Material | M; K; N; S |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Triangle |
