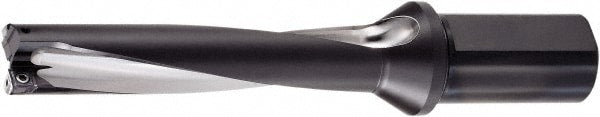

Indexable Insert Drill: P2D3300FS40M09, 33.00 mm Max Dia, 66.00 mm Max Depth, 2xD, 40.00 mm Shank Dia
Item #: 55897334
Brand: OSG
Model #: 7803148
Product Specifications
| Compatible Drill Style | P2D |
| Maximum Drill Diameter (mm) | 33.00 |
| Maximum Drill Depth (mm) | 66.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 094008 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78031 |
| Flute Length (mm) | 81.00 |
| Body Length | 89.00 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.62x9.62 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT094008 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
| Compatible Drill Style | P2D |
| Maximum Drill Diameter (mm) | 33.00 |
| Maximum Drill Depth (mm) | 66.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 094008 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78031 |
| Flute Length (mm) | 81.00 |
| Body Length | 89.00 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.62x9.62 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT094008 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
| MSC Part # | 55897334 |
| Mfr Part # | 7803148 |
| Country of Origin Country of Origin is subject to change | Japan |
