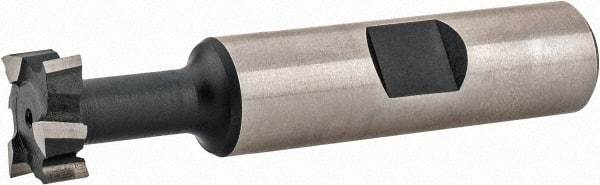

Interstate - 9/16" Cut Diam, 15/64" Cut Width, 17/64" Neck Diam, 1/2" Shank Diam, 2-19/32" OAL, High Speed Steel T-Slot Cutter - TiN Finish, 1/4" Bolt, 1-13/16" Shank Length, Staggered Teeth
Item #: 03000163
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 9/16 |
| Cutting Width (Inch) | 15/64 |
| Neck Diameter (Inch) | 0.2656 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2-19/32 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Bolt Size (Inch) | 1/4 |
| Shank Length (Inch) | 1-13/16 |
| Tooth Configuration | Staggered |
