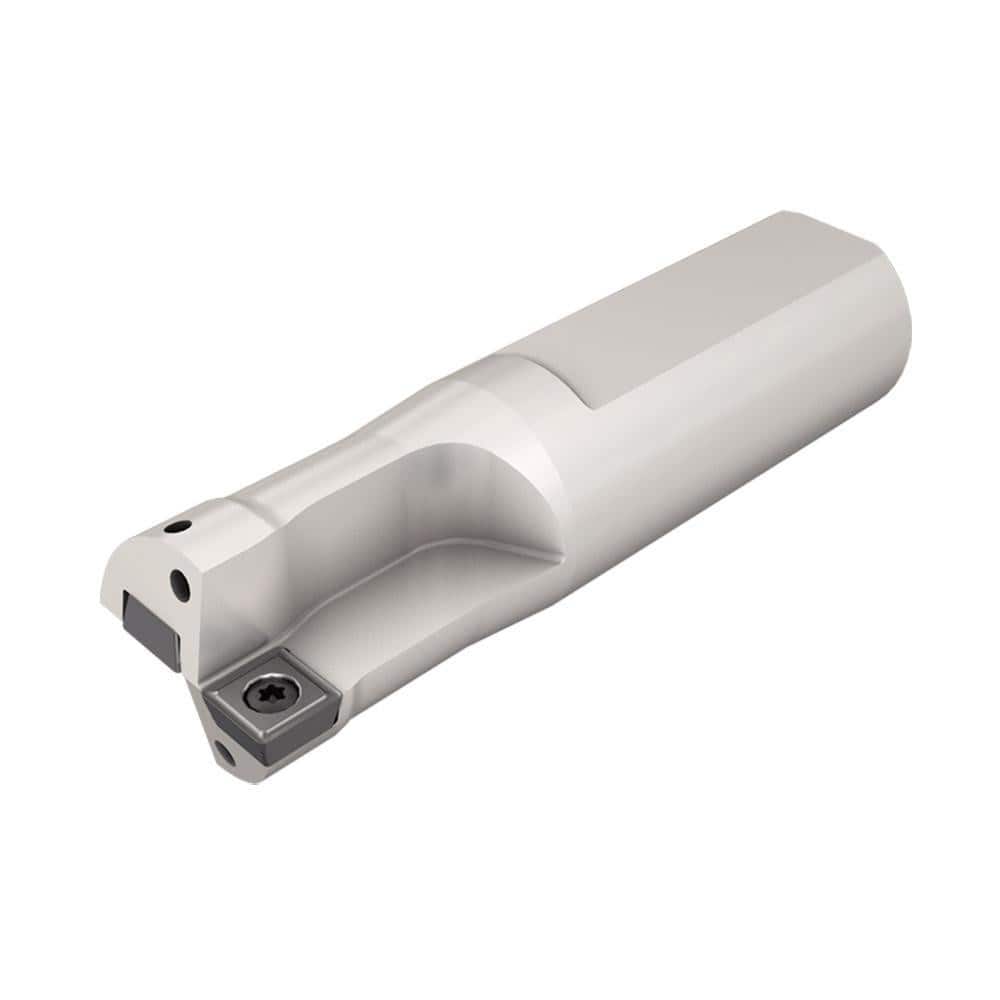

Indexable Insert Drills; Drill Style: DRM; Maximum Drill Diameter (Inch): 5/8; Maximum Drill Diameter (Decimal Inch): 0.6250; Maximum Drill Depth (Decimal Inch): 0.6300; Shank Type: Flatted; Shank Diameter (Decimal Inch): 0.7600; Number of Drill Inserts:
Item #: 02840650
Brand: Iscar
Model #: 3201518
Product Specifications
| Drill Style | DRM |
| Maximum Drill Diameter (Inch) | 5/8 |
| Maximum Drill Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth (Decimal Inch) | 0.6300 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 0.7600 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SO.X |
| Compatible Insert Size Code | 050204 |
| Drill Depth by Diameter Ratio | 1xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.0800 |
| Overall Length (mm) | 5.08 |
| Series | DRM |
| Flute Length (Decimal Inch) | 1.0200 |
| Shank Length (Decimal Inch) | 2.0300 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
